CEPU ANSI Process Pump


Engineered to meet and exceed the rigorous ANSI/ASME B73.1 Standard.


CEPU ANSI process pump is a frame mounted and end suction pump designed and built without compromise to handle corrosive chemicals and design conforms to ANSI Specification B73.1M in all respects. This pump covers a wide range of applications in most of the markets and maintainability, economy, safety, efficiency and flexibility of application. Trust in our pump to deliver exceptional quality, robust construction, and industry-leading durability:

  • Capacity to 1590 m³/h (7000 USGPM)
  • Total dynamic head to 223 m (730 feet)
  • Temperature to 371  °C (700 °F)
  • Pressure to 26 bar (375 PSIG)
  • Materials: Available in a wide range of materials of constructions class: Carbon steel, 316SS, CD4MCu, Alloy 20, Monel, Nickel, and Hastelloy
  • Engineered Packaging: Available in a wide range of drivers, seals, piping, nozzle configurations, flanges, baseplates and QC testing
  • Configurations: CEPU ANSI for horizontal process pump, CEPU-LF ANSI for low flow horizontal process pump, CEPU-SP ANSI for self priming horizontal process pump.

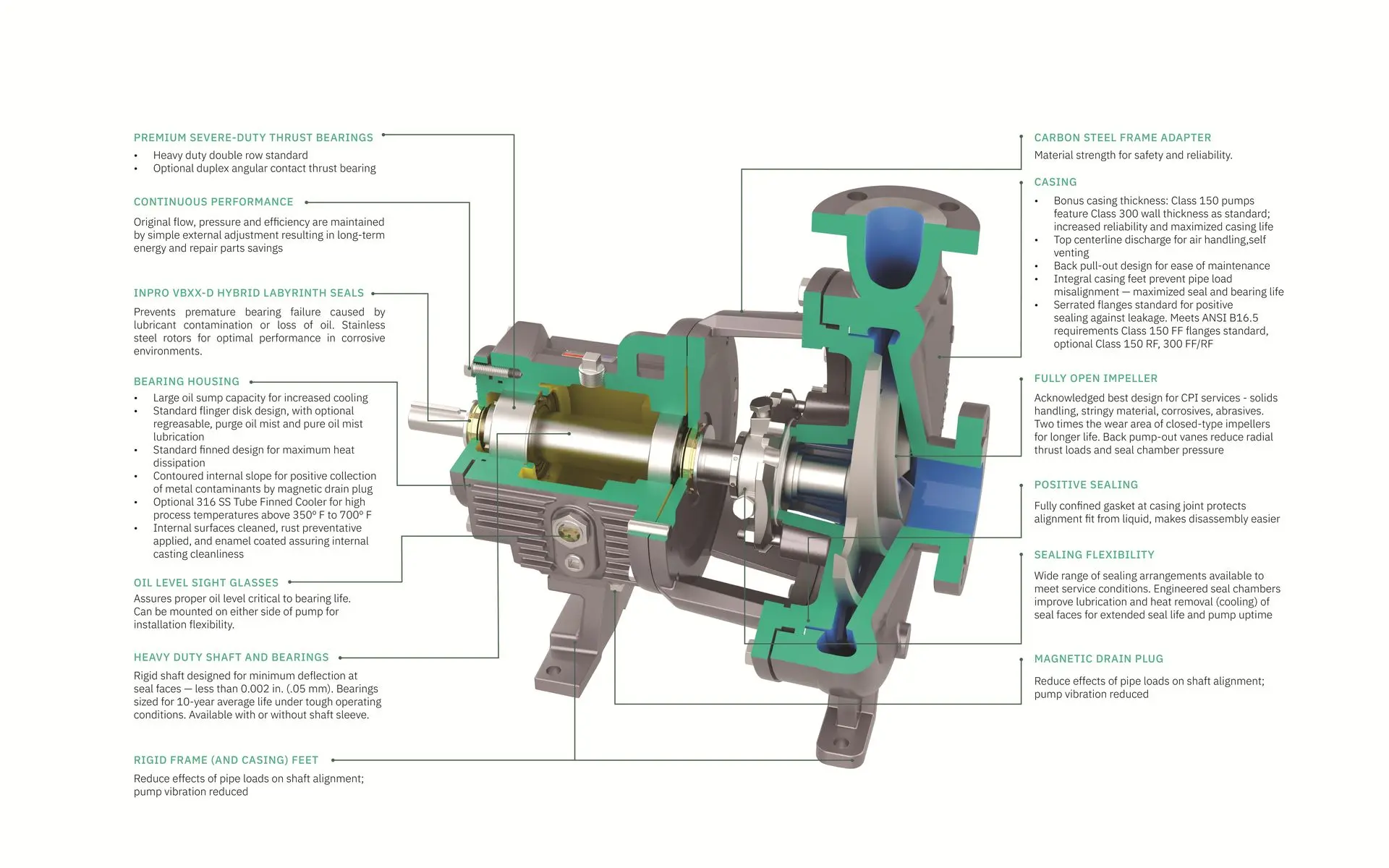

CEPU ANSI process pump design features and benefits.


With +30 hydraulics, CEPU ANSI process pump line is designed to meet and exceed the ANSI/ASME B73.1 specification.



CEPU ANSI process pump applications:

  • Acid transfer
  • Solvent transfer
  • Man-made fibers
  • Polymers feed
  • Slurry processing
  • Fertilizer production
  • Fuel & oil transfer
  • Volatile organic compounds
  • Waste processing, etc.

Download literature:
